19 Inch Rack Mounted 1U MTP MPO-LC 96F Fiber Patch Panel
19 inch rack mounted optical distribution frame (ODF) DW-MPO-1UA is the device that terminates between the optical cables and the optical communication equipment, with the function of splicing, termination, storing and patching of optical cables.
This special patch panel is an MPO pre-terminated ultra-high-density wiring box, 19-inch1U height. It is special design for data center which each patch panel can install up to 96 cores of LC. It can be used in high-density wiring applications such as computer centers, computer rooms, and databases.
The front and rear removable top cover, pull-out double guide, detachable front bezel, ABS light weight module box and other technical applications make it easy to use in high-density scenes whether it is in the cable or cable.
Specification:
|
Material
|
Steel tape
|
|
MPO Module
|
Available
|
|
Module material
|
Plastic
|
|
Module port
|
LC Duplex port: 12;MPO port: 2
|
|
Module installation way
|
Buckled Type
|
|
Fiber type
|
Sing Mode (SM) 9/125; MM (OM3, OM4, OM5)
|
|
Fiber count
|
8FO/ 12FO / 16FO/ 24FO
|
Features:
1.1 4x MTP/MPO Cassettes put into 1U, Up to 96 Fibers
1.2 1U MTP/MPO Optical Fiber Rack Mount Enclosure containing MTP/MPO Adapter, LC Duplex Adapter and MTP/MPO to LC Optical Fiber Cable
1.3 OS2 9/125 Single Mode or OM2/OM3/OM4/OM5 Multimode fiber
1.4 Strong pressure resistance and stable performance
1.5 100% tested for low insertion loss performance and high return loss
1.6 Simplifies cable management and allows for higher density
Application:
2.1 Hyperscale Data Centers (AI / Cloud / Hyperscale)
2.2 Telecom Backbone Networks (ODF systems, central offices)
2.3 Enterprise Fiber Networks (campus & structured cabling)
2.4 HPC / AI Clusters (GPU interconnect, low-latency networks)
2.5 Spine-leaf Data Center Architecture
FAQ:
1. Q : Are you trading company or manufacturer?
A : 70% of our products we manufactured and 30% do trading for customer service
2. Q : How can you ensure the quality?
A : Good question! We are a one-stop manufacturer. We have complete facilities and over-15- years manufacturing experience to ensure product quality. And we have already passed ISO 9001 Quality Management System.
3. Q : Can you provide samples ? Is it free or extra?
A : Yes, After price confirmation , we could offer the free sample, but the shipping cost need pay for by your side.
4. Q : How long is your delivery time ?
A : In stock: In 7 days; No in stock: 15~20 days, depend on your QTY.
5. Q: Can you do OEM?
A: Yes, we can
6. Q: What is your payment term?
A: Payment <=4000USD, 100% in advance. Payment>= 4000USD, 30% TT in advance, balance before shipment.
7. Q: How we can pay?
A: TT, Western Union, Paypal, Credit Card and LC
8. Q: Transportation?
A: Transported by DHL, UPS, EMS, Fedex, Air freight, Boat and Train
|
|

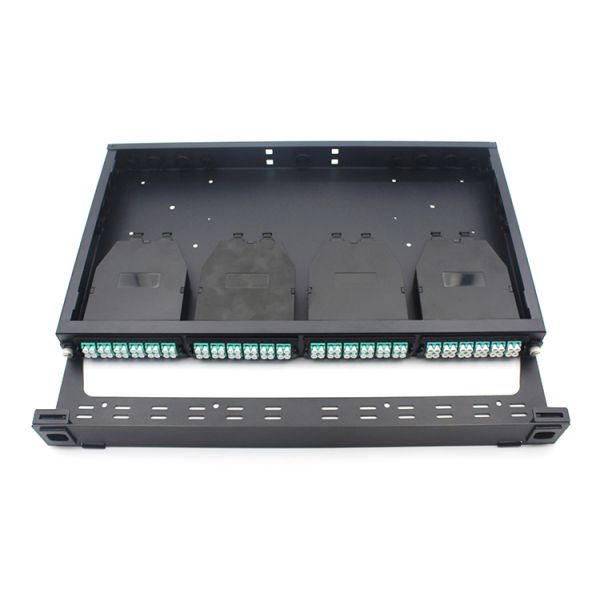

19 Inch Rack Mounted 1U Height MPO-LC 96 Fibers Fiber Patch Panel for High-Density Data Centers Images
|
